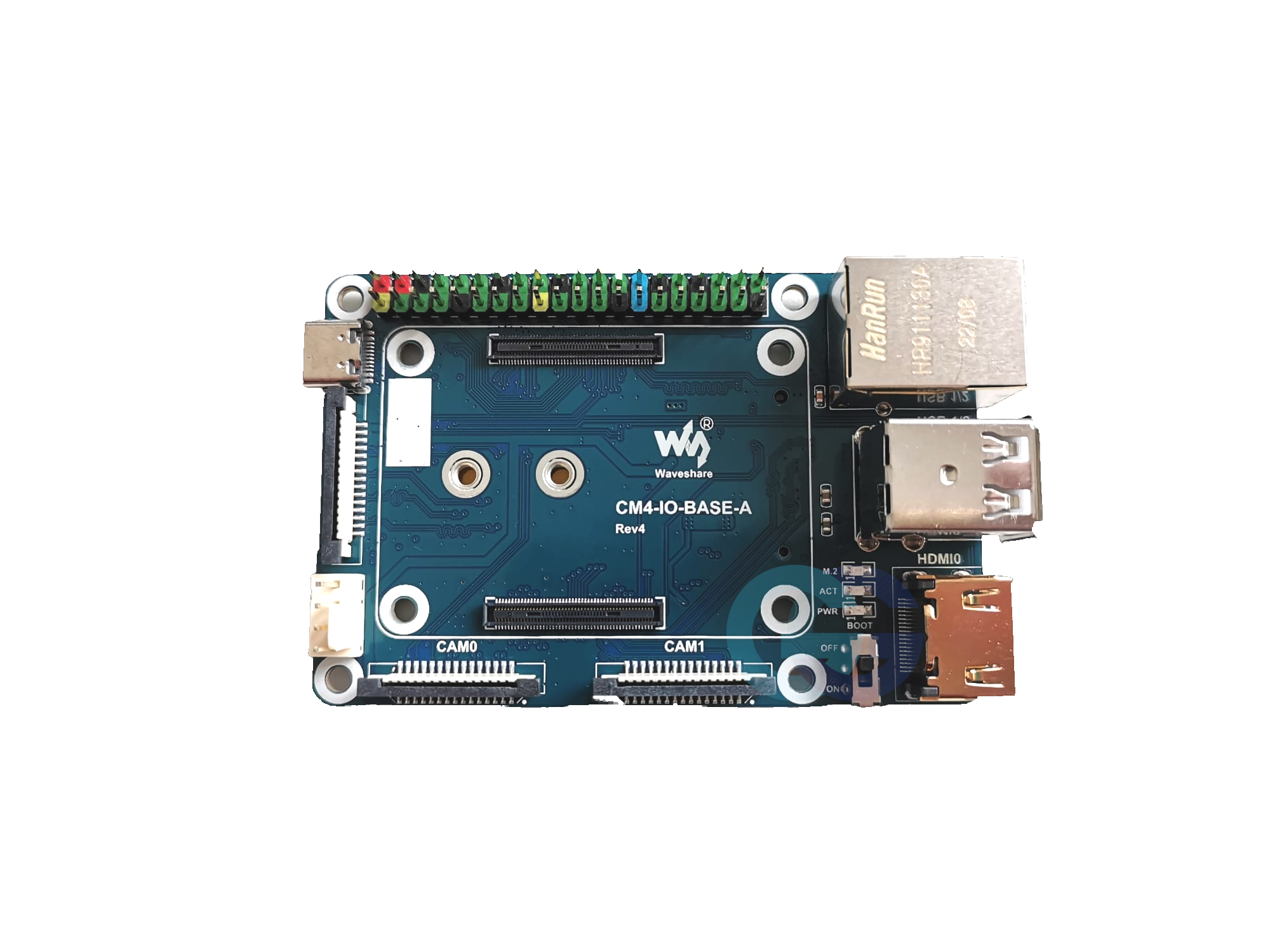

IO Board für das Raspberry Pi CM4 um alle Anschlussmöglichkeiten zu nutzen.
Header: 40PIN GPIO × 1
USB: USB 2.0 × 2 USB 2.0 × 2 (via FFC connector)
Header: 40PIN GPIO × 1
STORAGE: M.2 Slot × 1
HDMI: HDMI × 1 HDMI × 1 (via FFC connector) supports 4K 30fps output
DSI: Display MIPI DSI display port × 1 (15pin 1.0mm FPC connector)
CSI: Camera MIPI CSI-2 camera port × 2 (15pin 1.0mm FPC connector)
Power Input: 5V
Ethernet: Gigabit Ethernet RJ45
CM4 Socket suitable for all variants of Compute Module 4
Dimensions: (mm) 85.0 × 56.0
Herstellerinformation: https://www.waveshare.com/wiki/CM4-IO-BASE-A
